GRP MANHOLE LINERS & BENCHING MANUFACTURER IN UAE

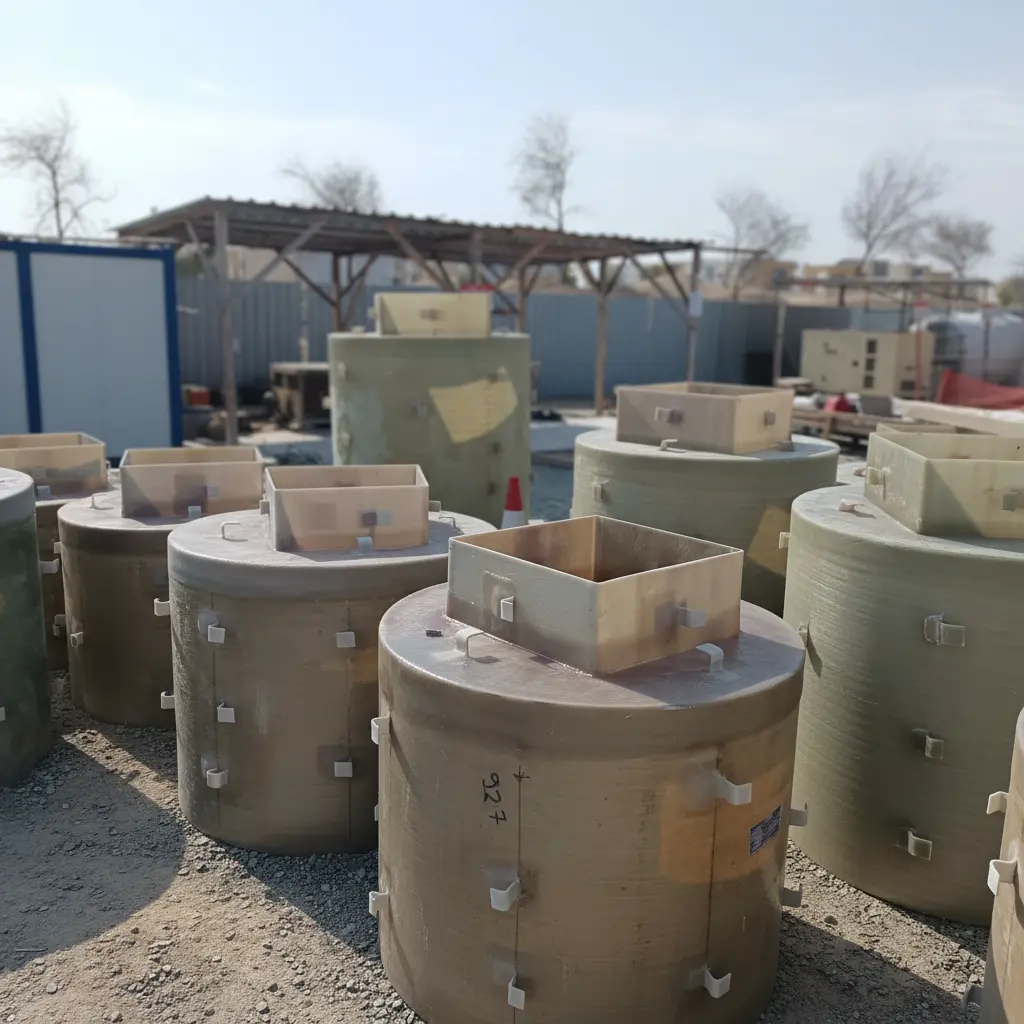

Array of manufactured GRP manhole chambers and drainage tanks staged at UAE fabrication facility

Engineered GRP Systems for Long-Life Sewerage & Wastewater Infrastructure

EFG Composites F.Z.E is a leading manufacturer of GRP manhole liners and preformed benching units in the UAE, engineering structural corrosion barriers that shield concrete sewer infrastructure from severe hydrogen sulfide ($H_2S$) microbial acid corrosion across municipal networks.

Direct Answer: Why are GRP manhole liners essential for UAE wastewater infrastructure?

Sewer and drainage networks in the UAE experience high ground temperatures and low flow velocities that generate extreme concentrations of hydrogen sulfide ($H_2S$) gas, which converts to sulfuric acid and eats away bare concrete within 3 to 5 years. GRP manhole liners form a completely impermeable, chemically inert protective shield (CPL) that prevents sewer exfiltration, eliminates groundwater infiltration, and extends manhole design lifespans to over 50 years in full compliance with Dubai Municipality, ADSSC, and Ajman Sewerage standards.

Our manhole systems are factory-fabricated in shaft diameters from DN 600mm to DN 3000mm, with custom benching units providing optimal hydraulic flow coefficients ($n=0.009$).

GRP Manhole Liner & Benching Engineering Matrix

ComponentDiameter Range (DN)Resin & Lining MatrixMunicipal Compliance
Circular Shaft LinersDN 600 mm to DN 3,000 mmFilament-wound isophthalic / vinyl esterDubai Municipality (DM) / ADSSC / ASP
Hydraulic Benching UnitsStraight, angled, crossing & drop benchingUltra-smooth anti-fouling resin layerManning n=0.009 (Maximum self-cleaning)
Wall Thickness4 mm to 14 mm structural compositeEngineered for external soil & water loadBS 5480 / ASTM D3753
Chemical ResistanceResistant to pH 1 to pH 14 continuous exposureImmune to microbial corrosion (MIC)Design life exceeding 50 years

Key Advantages of GRP Manhole Liners & Benching

Performance Benefits in Wastewater Environments

Exceptional Corrosion Resistance

GRP is resistant to acids, gases, and aggressive wastewater environments where concrete rapidly deteriorates.

Long Service Life

Designed for decades of performance with minimal degradation under continuous exposure.

Gas-Tight & Leak-Resistant Systems

Properly designed liners and sealing components prevent infiltration, exfiltration, and odour escape.

Lightweight with High Structural Strength

Easier handling and installation without compromising durability.

Low Maintenance Requirements

No recoating, patching, or frequent rehabilitation cycles.

Non-Conductive & Electrically Insulating

Safe for underground and utility-dense environments.

Why Manholes Fail and Why GRP Is the Solution

Concrete manholes are continuously exposed to some of the most destructive conditions in civil infrastructure:

Over time, these conditions lead to concrete corrosion, leakage, odour issues, and structural damage, resulting in frequent rehabilitation and high lifecycle costs.
GRP manhole liners and benching systems are engineered specifically to eliminate these failure mechanisms.

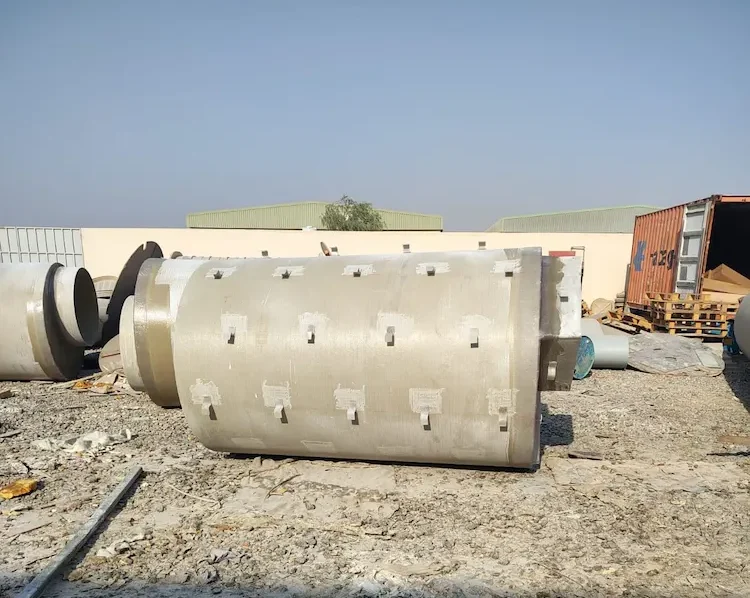

horizontal GRP tank for industrial storage and process applications

Manufactured for Sewerage & Wastewater Infrastructure

EFG Composites manufactures industrial-grade GRP manhole systems, suitable for:

Municipal sewerage networks
Wastewater treatment plants
Stormwater drainage systems
Industrial effluent networks
Pump stations and chambers
New construction projects
These systems are designed to perform in both new installations and retrofit applications.

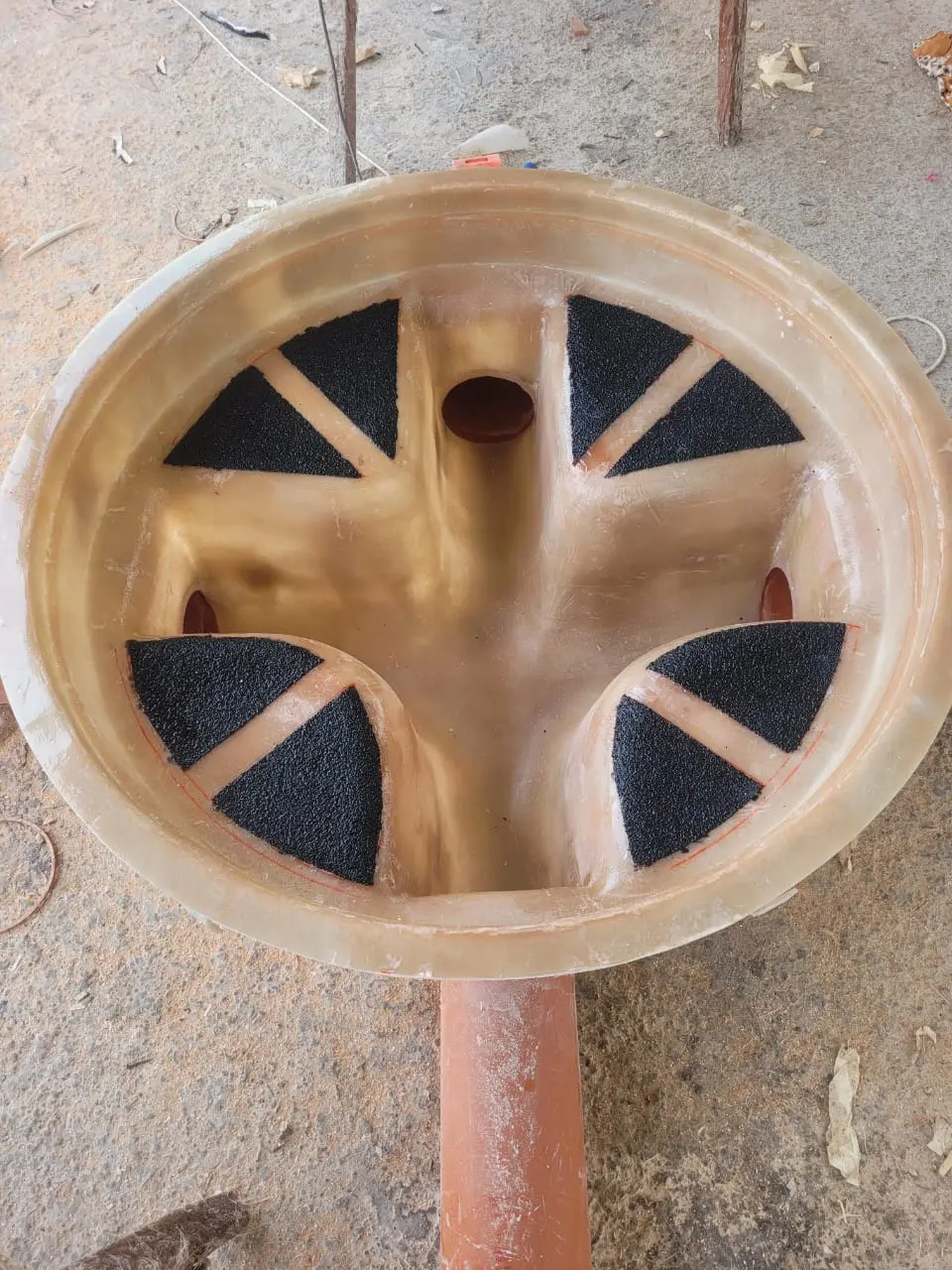

GRP manhole benching with anti slip surface for drainage and wastewater systems

Engineering & Manufacturing Approach

Every GRP manhole liner and benching system is produced using controlled composite manufacturing processes, selected to ensure strength, dimensional accuracy, and durability.

Manufacturing Highlights

Manufacturing decisions are driven by load conditions, hydraulic performance, chemical exposure, and installation requirements.

Product Scope: GRP Manhole Systems & Components

EFG Composites supplies a complete range of GRP manhole components, including:

Each system is engineered to integrate seamlessly with existing civil structures and pipeline connections.

Installation Efficiency & Site Benefits

Compared to traditional rehabilitation methods, GRP manhole liners offer:

This makes GRP liners ideal for urban, high-traffic, and time-sensitive projects.

Cylindrical composite GRP storage vessels prepared for transport and project installation in the UAE
Quality Assurance & Manufacturing Discipline

Quality at EFG Composites is embedded into every stage of production.

Our focus includes:

  • Laminate integrity and uniformity
  • Dimensional accuracy
  • Surface finish and non-slip properties
  • Resistance to chemical and gas exposure

Products are manufactured to deliver long-term structural and functional reliability, not short-term fixes.

UAE-Based Manufacturing Advantage

Operating from the Ajman Free Zone, EFG Composites offers:

  • Faster delivery across the UAE
  • Local coordination for inspections and approvals
  • Support for government and municipal tenders
  • Custom fabrication without overseas lead times
  • Responsive technical and after-sales support

Local manufacturing ensures greater accountability, faster response, and consistent quality control.

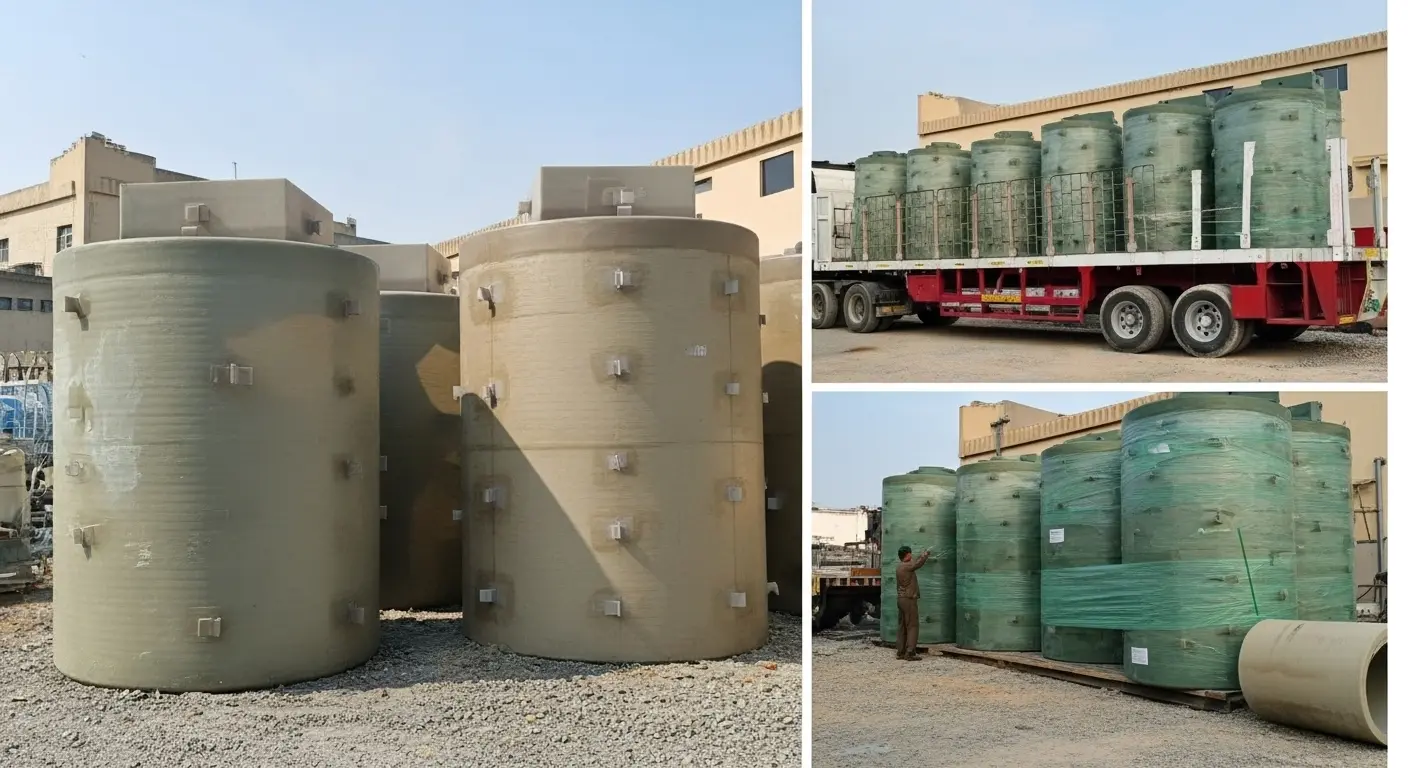

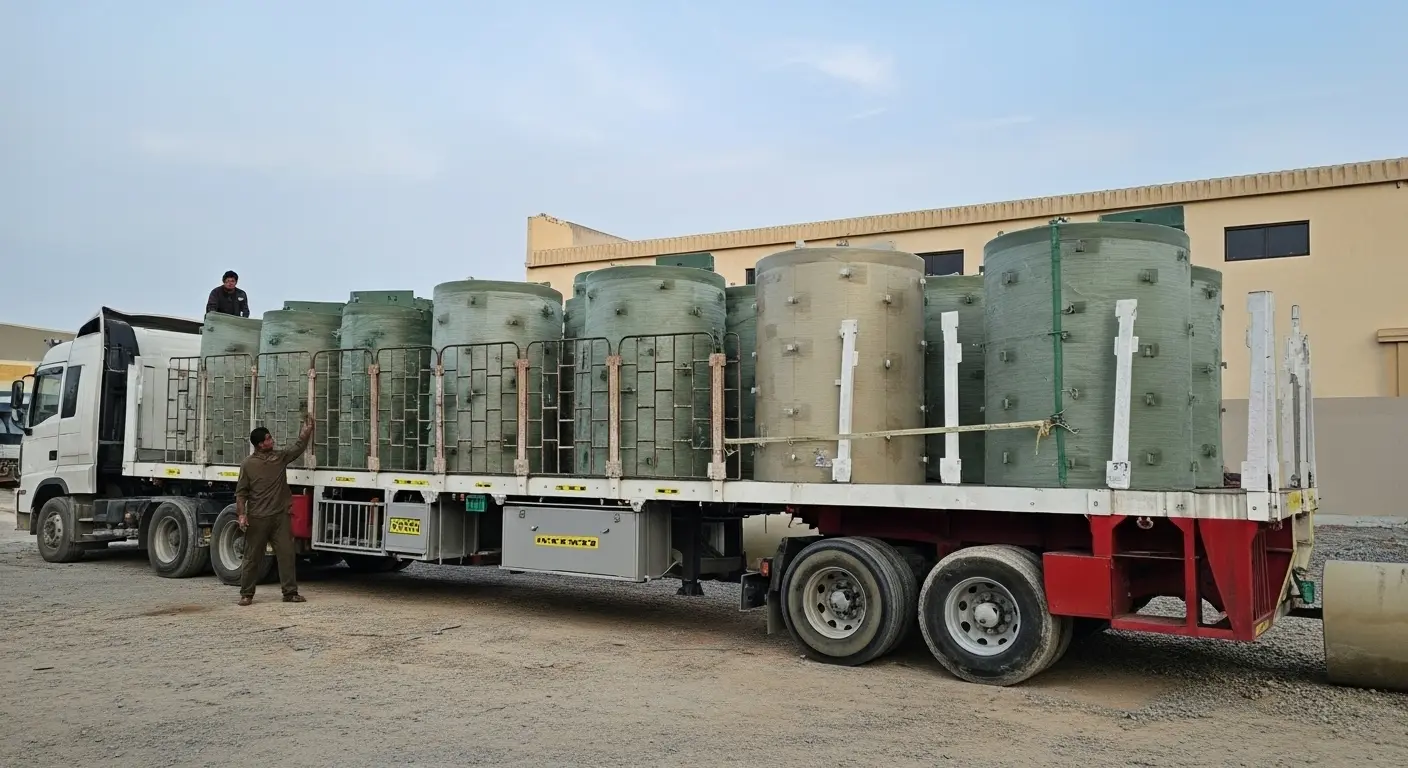

Large-diameter cylindrical GRP industrial storage tanks loaded on transport trailer for project delivery in the UAE

Dimensional Stability & Structural Reliability

GRP manhole systems offer:

These characteristics ensure predictable performance over the full design life of the infrastructure.

Why Choose EFG Composites for GRP Manhole Liners & Benching

We work with project owners and engineers who require infrastructure that lasts, not temporary remediation.

UAE-based manufacturer, not an importer
Experience in real sewerage and wastewater projects
Engineering-led design and fabrication
Custom solutions for complex site conditions
Request a Quotation

Discuss Your GRP Manhole Liner or Benching Requirement

If your project requires GRP manhole liners or benching systems manufactured in the UAE, our team can assist with specification review, design coordination, and fabrication planning.
