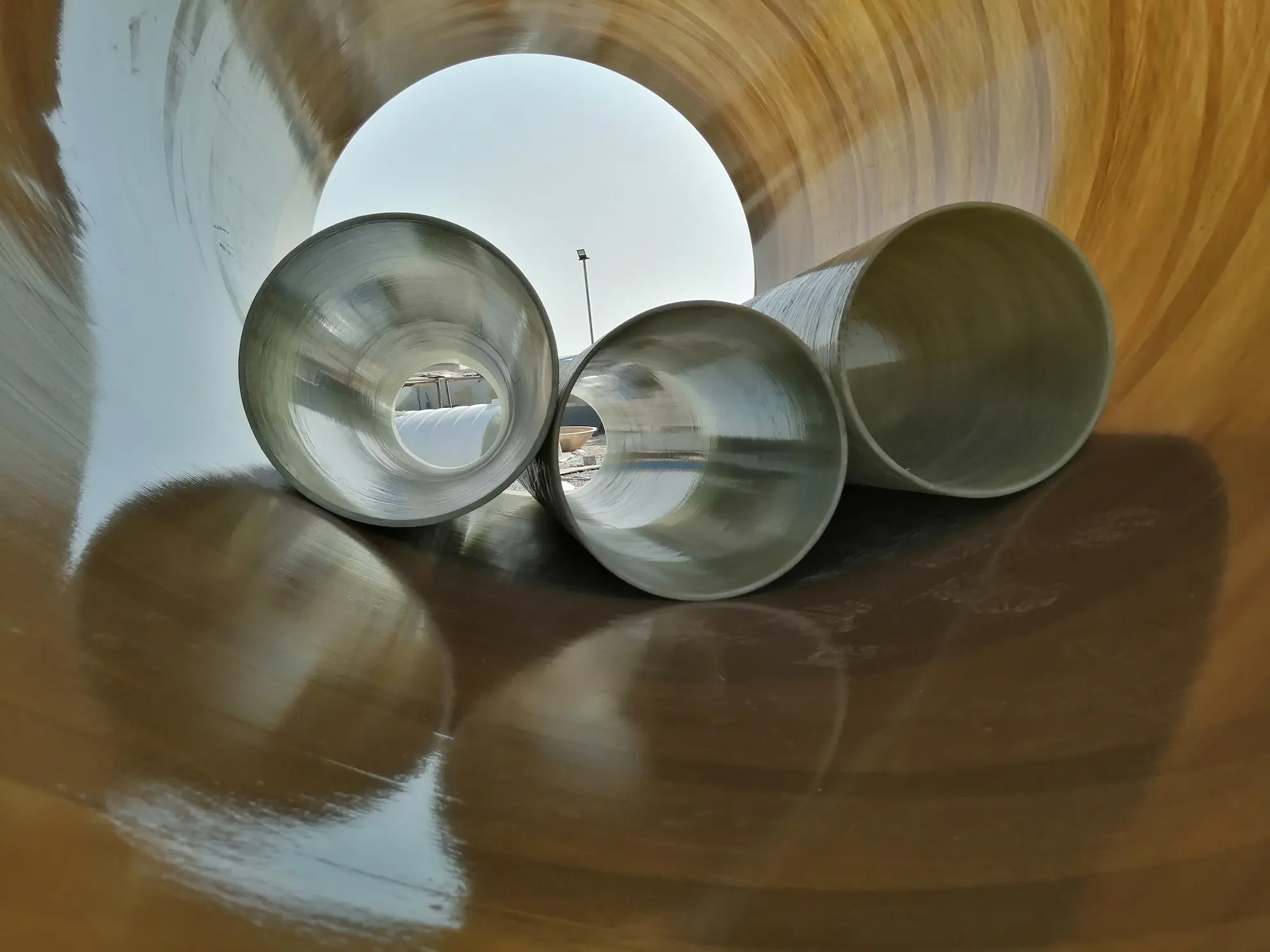

smooth internal surface of GRP pipes showing corrosion resistant lining for fluid flow

Engineered GRP, GRV & GRE Piping Systems for UAE & GCC Infrastructure

EFG Composites F.Z.E is an ISO 9001:2015 and ICV-certified manufacturer of engineered industrial GRP, GRV, and GRE pipe fittings in the UAE, supplying high-integrity elbows, tees, reducers, and flanges from DN 25mm to DN 2000mm for district cooling, desalination, and petrochemical infrastructure.

Direct Answer: What pressure classes and standards apply to GRP pipe fittings in the UAE?

GRP pipe fittings in the UAE are manufactured in nominal pressure classes ranging from PN 6 to PN 32 bar and nominal diameters from DN 25mm up to DN 2,000mm. Engineered via high-density filament winding and hand lay-up with vinyl ester and epoxy resins, EFG composite fittings conform to AWWA C950, ASTM D3517, ASTM D2996, and BS EN 1796 standards, approved for high-salinity seawater and aggressive chemical conveyance.

Our pipe fittings are engineered with butt-and-strap, bell-and-spigot double O-ring, and flanged connections compliant with ANSI B16.5 and DIN EN 1092-1 drilling patterns.

GRP / GRE Pipe Fitting Range & Pressure Classes

Fitting ConfigurationDiameter Range (DN)Nominal Pressure (PN)Joint / Connection Type
Elbows / Bends (15°, 30°, 45°, 90°)DN 25 to DN 2,000 mmPN 6, 10, 16, 25, 32 barButt & Wrap / Flanged
Equal & Reducing TeesDN 50 to DN 1,600 mmPN 6 to PN 25 barLaminated Molded Joint
Concentric & Eccentric ReducersDN 50 to DN 1,800 mmPN 6 to PN 25 barFilament-Wound Taper
Flanges (Fixed, Stub, Blind)DN 25 to DN 2,000 mmPN 10 to PN 25 barANSI B16.5 / DIN EN 1092-1

Key Advantages of GRP / GRE Pipes & Fittings

Performance Benefits in Real Operating Conditions

Exceptional Corrosion & Chemical Resistance

Immune to rust, pitting, and chemical attack.

High Strength-to-Weight Ratio

Strong yet lightweight, reducing handling and installation costs.

Smooth Internal Bore

Low friction losses improve hydraulic efficiency and reduce pumping costs.

Dimensional Stability

Consistent performance under temperature and pressure variation.

Low Maintenance & Long Service Life

Designed for decades of reliable operation with minimal intervention.

Non-Conductive & Non-Magnetic

Safe for electrical and sensitive installations.

Why Composite Piping Systems Are Replacing Steel & Concrete

Fluid transport systems are exposed to continuous operational stress:
Steel and concrete piping systems degrade under these conditions, leading to corrosion, leakage, frequent repairs, and high lifecycle costs. GRP, GRV, and GRE composite pipes are engineered to eliminate these failure mechanisms at the material level.

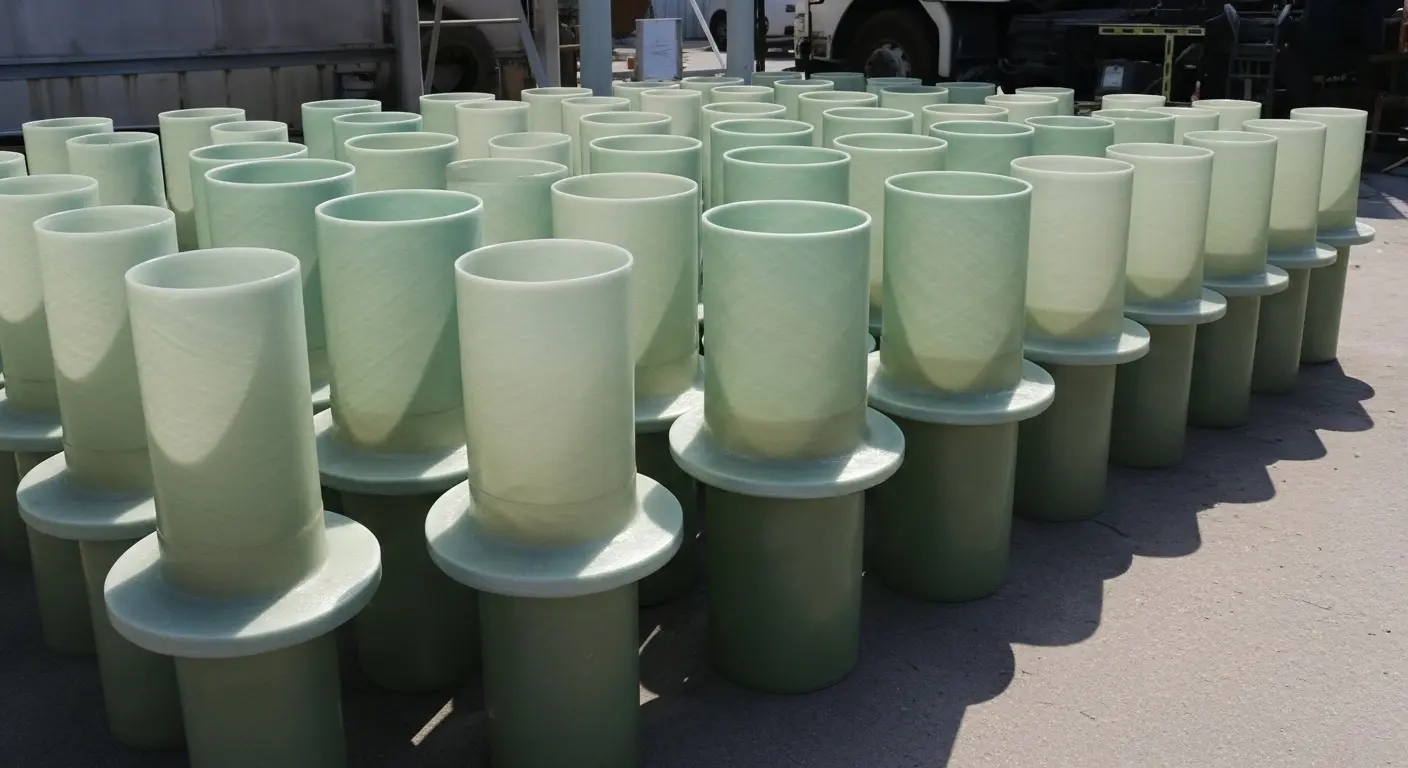

Illustrative rendering of prefabricated GRP pipe spool components aligned for industrial pipeline connections

Understanding GRP, GRV & GRE Pipe Systems

EFG Composites manufactures multiple composite pipe types to suit different operating conditions.

Illustrative rendering of prefabricated GRP pipe spool components aligned for industrial pipeline connections
GRP – Glass Reinforced Plastic

Manufactured using isophthalic polyester resin systems, GRP pipes are suitable for:

  • Water supply and transmission
  • Sewerage and drainage systems
  • Industrial effluent lines
  • Underground and aboveground installations

Typical operating temperatures up to 60°C, depending on resin selection.

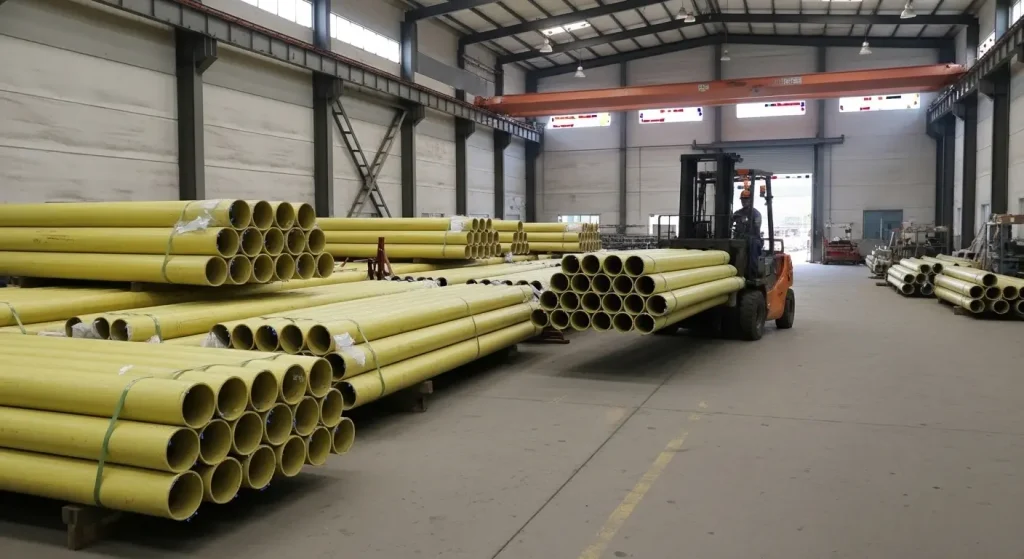

GRP GRE pipes stacked in UAE manufacturing facility with forklift handling composite pipes
GRV – Glass Reinforced Vinyl Ester

Manufactured entirely using vinyl ester resin systems, GRV pipes offer enhanced chemical resistance and are ideal for:

  • Industrial and chemical process lines
  • Highly corrosive media
  • Aboveground industrial installations

Typical operating temperatures up to 85°C.

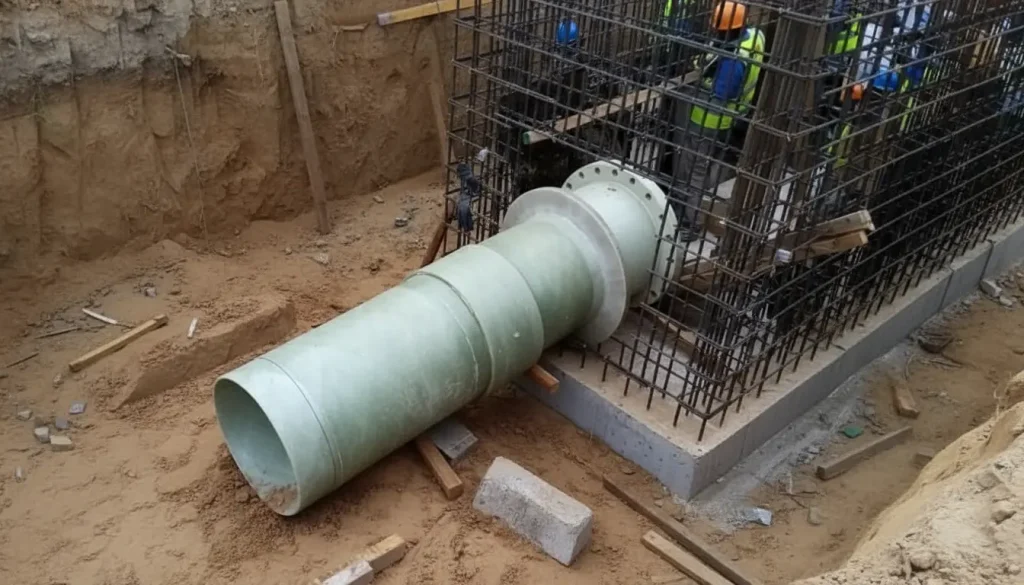

GRP pipe installation in UAE construction site with concrete chamber and underground pipeline connection
GRE – Glass Reinforced Epoxy

Manufactured using epoxy resin systems, GRE pipes provide superior mechanical strength and temperature resistance, making them suitable for:

  • Oil & gas applications
  • High-pressure industrial systems
  • Elevated temperature service conditions

Typical operating temperatures up to 120°C, depending on design.

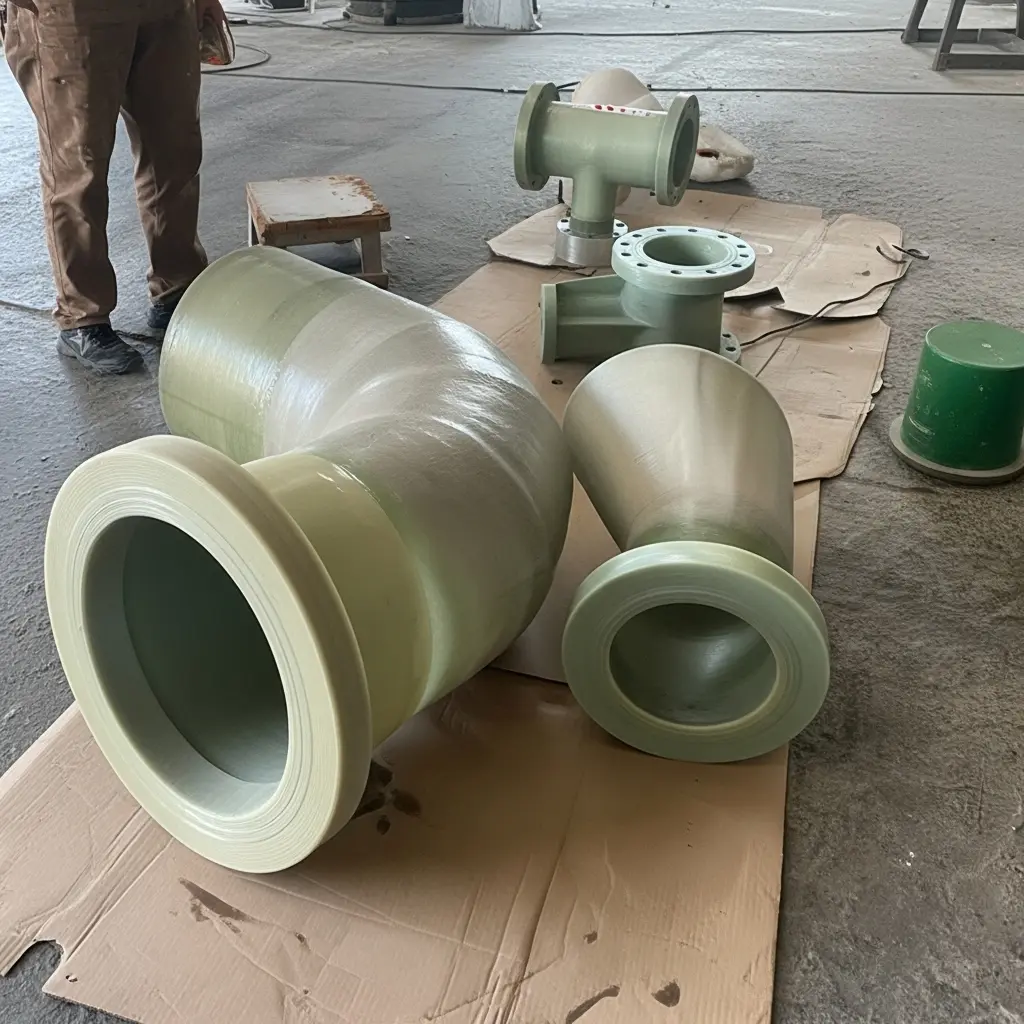

Technical illustration of fabricated GRP pipe fittings including concentric reducers and equal tees

Filament Winding Manufacturing & ASTM / BS EN Engineering Standards

EFG Composites manufactures pipes and fittings using controlled filament winding processes, ensuring uniform wall thickness, fiber orientation, and laminate quality.
Manufacturing Highlights
Each pipe system is engineered based on pressure class, temperature, chemical exposure, and installation method.

Applications Across Critical UAE Sectors: Sewerage, Water & Industrial Cooling

EFG Composites supplies GRP, GRV, and GRE piping systems for a wide range of applications, including:

Each application is evaluated to ensure material compatibility, pressure integrity, and long-term performance.

Jointing Systems & Installation Flexibility

EFG Composites supports a range of jointing options to suit project requirements, including:

These options provide flexibility for buried, aboveground, and industrial installations.
Illustrative rendering of stacked GRP and GRE composite pipes in an outdoor staging yard
Tender & Procurement Engineering Data

GRP & GRE Pipe Dimensions, Pressure Classes & Compliance Matrices

Comprehensive technical matrices for civil engineering consultants, EPC contractors, and municipal procurement departments specifying composite piping systems across the UAE and GCC.

1. Nominal Diameters (DN), Pressure Ratings (PN) & Stiffness Classes (SN)

ASTM D3517 / BS EN 1796
Nominal Diameter (DN) Pressure Rating (PN) Stiffness Class (SN) Standard Length Primary UAE Infrastructure Applications
DN 25mm – DN 100mm (1" – 4") Gravity to PN 32 bar SN 5000 / SN 10000 N/m² 6 meters / Custom Chemical dosing lines, instrumentation feeds, oilfield flowlines, aggressive process plumbing
DN 150mm – DN 300mm (6" – 12") Gravity to PN 25 bar SN 5000 / SN 10000 N/m² 6m / 12 meters Potable water distribution, industrial cooling water, sewage pumping force mains, STP intake
DN 350mm – DN 600mm (14" – 24") Gravity to PN 20 bar SN 2500 / SN 5000 / SN 10000 6m / 12 meters Municipal gravity sewerage, district cooling chilled water networks, stormwater drainage
DN 700mm – DN 1200mm (28" – 48") Gravity to PN 16 bar SN 2500 / SN 5000 / SN 10000 6m / 12 meters Municipal trunk sewer transmission, desalination plant raw water feed, wastewater trunk mains
DN 1400mm – DN 2000mm (56" – 80") Gravity to PN 10 bar SN 2500 / SN 5000 N/m² 6m / 12 meters Seawater intake and outfall, coastal power plant cooling channels, storm surge drainage culverts

2. Composite Resin Matrix Comparison: GRP vs. GRV vs. GRE

Material Selection Guide
Technical Characteristic GRP (Isophthalic Polyester) GRV (Vinyl Ester Resin) GRE (Epoxy Resin System)
Resin Base Chemistry Isophthalic Unsaturated Polyester Bisphenol-A / Epoxy-Novolac Vinyl Ester Aromatic Amine Cured High-Tg Epoxy
Max Operating Temperature Up to 60°C (140°F) Up to 95°C (203°F) Up to 110°C (230°F) (120°C with post-cure)
Max Working Pressure Up to PN 16 – 25 bar Up to PN 25 bar Up to PN 32 – 40 bar (High-Pressure Flowlines)
Chemical & Corrosion Profile Excellent for municipal sewage, H2S sewer gas, potable water, mild industrial effluents Superior resistance to strong inorganic acids (HCl, H2SO4), caustic soda, chlorine & hot brine Exceptional for crude oil, hydrocarbons, aromatic solvents, sour gas (H2S/CO2), and high pressures
Key UAE Application Sectors Municipal drainage, potable water transmission, building services, stormwater Industrial effluent treatment, chemical factories, desalination brine outfalls Oil & gas onshore/offshore flowlines, refinery cooling, aviation fuel transfer

3. Pipe Jointing Technologies & Installation Methods

Leak-Free Integrity
Joint Type Sealing Mechanism Pressure Capability Recommended Installation Environment
Double Bell & Spigot Dual EPDM / NBR elastomeric O-rings with intermediate test port for field leak verification Gravity up to PN 25 bar Direct buried municipal transmission, long-run civil pipeline trenching
Laminated Butt & Strap Continuous structural glass fiber lay-up with matching chemical resin overlay Full pipe rating (up to PN 32 bar) Aboveground plant piping, bridge crossings, non-standard field fittings, spool pieces
GRP / GRE Flanged Joint Integral GRP stub with loose or fixed backing ring (drilled to ASME B16.5 or DIN EN 1092-1) Up to PN 25 bar Pump station connections, valve tie-ins, tank nozzle penetrations, inspection ports
Mechanical Coupling (Straub / Teekay) Marine-grade 316 stainless steel casing with internal elastomeric sealing sleeve Up to PN 16 bar Tie-ins to existing ductile iron/carbon steel pipelines, localized maintenance repairs

4. International Standards & UAE Authority Tender Compliance

ADNOC / DEWA / Municipal Spec
Specification Standard Standard Scope & Focus Authority & Project Recognition
ASTM D3517 Standard Specification for Fiberglass (Glass-Fiber-Reinforced Thermosetting-Resin) Pressure Pipe Primary tender specification across UAE potable water, cooling water & irrigation networks
ASTM D3754 Standard Specification for Fiberglass Sewer and Industrial Pressure Pipe Municipal sewerage force mains, industrial wastewater transfer, and pumping stations
ASTM D2996 Standard Specification for Filament-Wound "Fiberglass" (Glass-Fiber-Reinforced Thermosetting-Resin) Pipe ADNOC, oil & gas, and heavy petrochemical high-pressure GRE transmission
BS EN 1796 Plastics piping systems for water supply with or without pressure — GRP based on unsaturated polyester resin Adopted by municipal water authorities (DEWA, SEWA, FEWA, ADDC) for civil contracts
BS EN 14364 Plastics piping systems for drainage and sewerage with or without pressure — GRP based on unsaturated polyester resin Mandatory standard for UAE municipal sewage networks, manholes, and treatment plants
AWWA C950 Fiberglass Pressure Pipe (American Water Works Association) Global engineering benchmark for municipal water transmission pipeline design
ISO 10639 / ISO 10467 Plastics piping systems for pressure and non-pressure water supply, drainage, and sewerage Harmonized international standard for long-term hydrostatic design basis (HDB) qualification

Require Tender Submittals, BOQ Sizing, or ASTM Compliance Test Reports?

Our Ajman engineering team assists consultants, contractors, and municipal procurement departments with hydraulic head loss calculations, pipe wall thickness design, stiffness class selection, and custom fitting fabrication.

Quality Assurance & Reliability

Quality is integral to every pipe and fitting manufactured by EFG Composites.

Our quality focus includes:

  • Laminate integrity and uniformity
  • Mechanical and dimensional accuracy
  • Resistance to chemical and environmental exposure
  • Long-term performance under cyclic loading

This disciplined approach ensures predictable, specification-compliant piping systems delivered to site.

UAE-Based Manufacturing Advantage

Operating from the Ajman Free Zone, EFG Composites provides:

  • Faster delivery within the UAE
  • Local support for inspections and approvals
  • Custom fabrication without overseas lead times
  • Support for government and private sector tenders
  • Responsive technical and after-sales assistance

Local manufacturing ensures greater control, accountability, and project responsiveness.

Why Choose EFG Composites for GRP / GRE Pipes & Fittings

We work with clients who require piping systems that perform reliably over decades, not just at commissioning.

UAE-based manufacturer, not an importer
Experience across water, industrial, and oil & gas sectors
Engineering-led material and design selection
Focus on lifecycle performance, not short-term cost
