GRP / FRP Grating Manufacturer & Supplier in the UAE

Illustrative technical display showcasing interlocking FRP grating panels and cellular media blocks for process plants

Moulded & Pultruded Fiberglass Grating Systems for Industrial & Infrastructure Applications

EFG Composites F.Z.E is a premier manufacturer and stockist of molded and pultruded GRP / FRP gratings in the UAE, providing high-load, anti-slip flooring panels for industrial walkways, drainage trench covers, and offshore platforms across Dubai, Abu Dhabi, and the GCC.

Direct Answer: What are the standard mesh sizes and load ratings for GRP gratings in the UAE?

Standard GRP molded gratings in the UAE feature 38 x 38 mm square mesh with panel depths of 25 mm, 30 mm, 38 mm, and 50 mm, providing uniform load capacities from 5 kN/m² to over 30 kN/m². Finished with an integrated quartz grit achieving a certified DIN 51130 R13 anti-slip rating, EFG gratings provide continuous corrosion resistance in offshore marine, chemical, and wastewater facilities.

Available in standard isophthalic and flame-retardant vinyl ester resin matrices, our grating panels comply with BS 4592, ASTM E-84 Class 1 fire spread, and UAE Civil Defense requirements.

Standard GRP Grating Panel & Mesh Size Matrix

Depth (mm)Mesh Pattern (mm)Standard Panel DimensionsWeight (kg/m²)Open Area %
25 mm38 x 38 Square1220 x 3660 mm12.3 kg/m²68%
30 mm38 x 38 Square1220 x 3660 mm14.6 kg/m²68%
38 mm (Heavy-Duty)38 x 38 Square1220 x 3660 mm / 1000 x 4000 mm19.5 kg/m²68%
50 mm (Vehicular)50 x 50 Square1220 x 3660 mm23.5 kg/m²78%
30 mm Mini-Mesh19 x 19 (ADA compliant)1220 x 3660 mm15.8 kg/m²42%
Interactive Engineering Tool

GRP Grating Span & Load Deflection Sizer

Standards: BS 4592 / DIN 51130 / ASTM D790

1. Design Parameters

300 mm (Trench) 900 mm (Walkway) 1500 mm (Heavy Span)

2. Engineering Recommendation

Recommended Depth
30 mm or 38 mm
Mesh Pattern
38 x 38 mm
Predicted Deflection at Midspan: 1.8 mm
OSHA Deflection Limit (Max L/200): L/333 (Passes Safety Limit)
Surface Finish: Quartz gritted anti-slip surface rated DIN 51130 R13.
Weight Advantage: Approx. 14.5 kg/m² (65% lighter than 42 kg/m² steel grating).

Key Advantages of GRP / FRP Gratings

Performance & Safety Benefits

Exceptional Corrosion Resistance

Immune to rust, chemical attack, and marine exposure.

Slip-Resistant Surface

Integrated non-skid finish improves safety in wet or oily conditions.

High Strength with Low Weight

Easier handling and installation without compromising load capacity.

Non-Conductive & Non-Sparking

Safe for electrical, hazardous, and explosive environments.

Low Maintenance & Long Service Life

No painting, coating, or corrosion treatment required.

Fire-Retardant & UV-Resistant Options

Suitable for indoor and outdoor installations in harsh climates.

Why Traditional Metal Gratings Fail

In industrial and infrastructure environments, gratings are exposed to:
Steel and aluminium gratings deteriorate over time—corroding, becoming slippery, requiring repainting, and increasing safety risks. GRP / FRP gratings eliminate these failure modes at the material level.

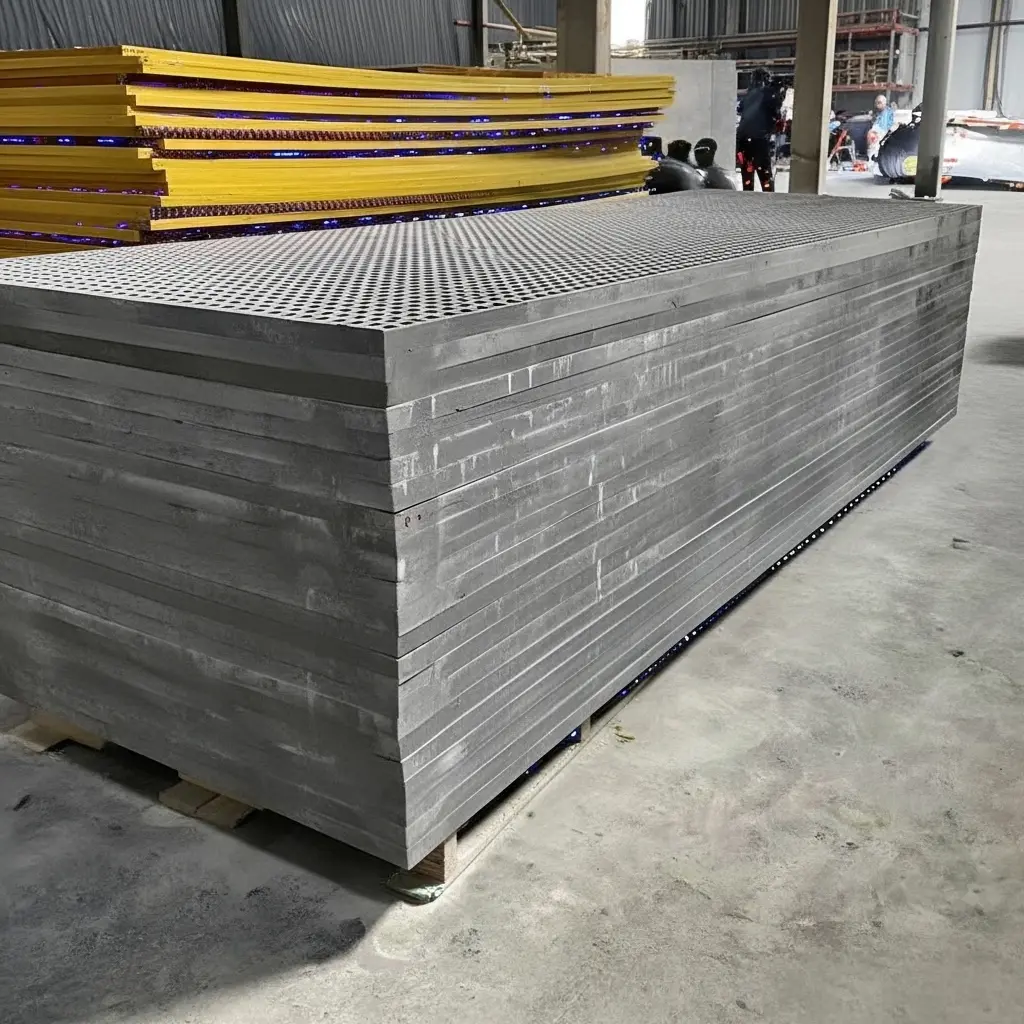

heavy duty GRP panels stacked for industrial platforms and structural flooring systems

Types of GRP / FRP Gratings Manufactured by EFG Composites

EFG Composites manufactures both moulded and pultruded fiberglass grating systems, selected based on load requirements, installation conditions, and exposure severity.

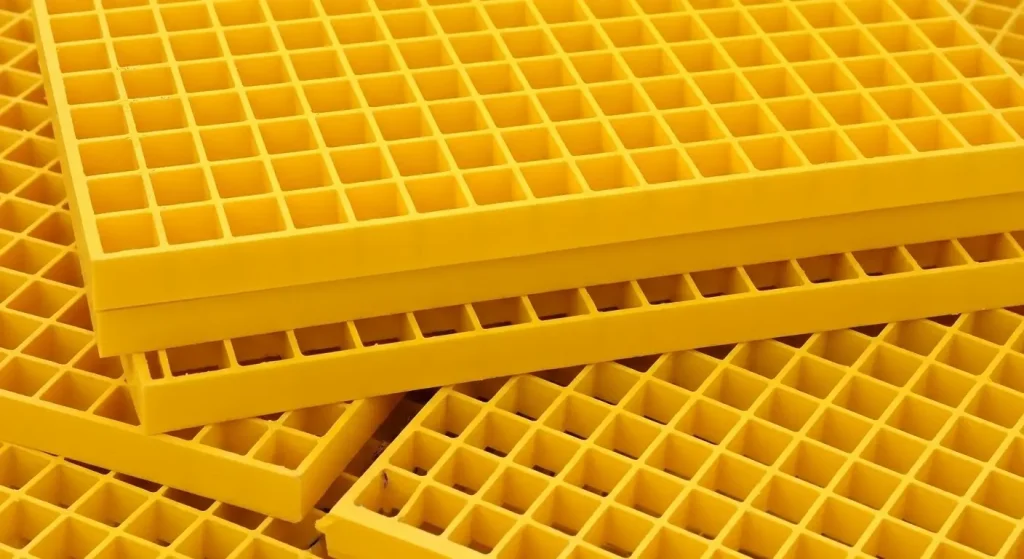

yellow FRP gratings panels for industrial flooring and drainage systems in UAE
Moulded GRP / FRP Gratings

Moulded gratings are manufactured as monolithic panels using continuous glass fiber reinforcement and chemical-resistant resin systems.

Key Characteristics

  • Bi-directional strength

  • High resin content for superior corrosion resistance

  • Integrated anti-skid surface

  • Easy cutting and on-site adaptation

Typical Applications

  • Chemical processing plants

  • Wastewater treatment facilities

  • Marine and offshore environments

  • Food and beverage processing areas

Walkways, trenches, and platforms

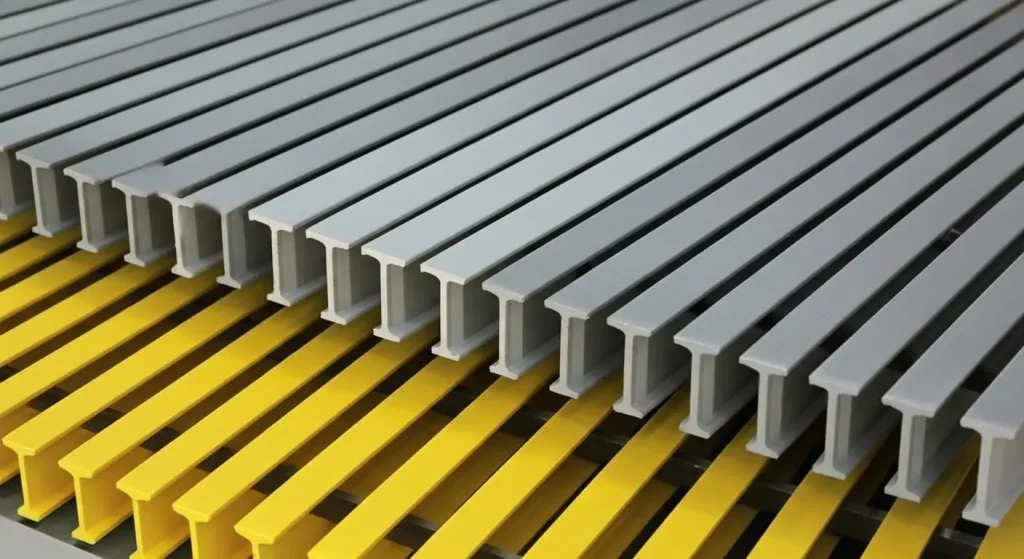

GRP structural I beams and FRP profiles for industrial construction and support systems
Pultruded GRP / FRP Gratings

Pultruded gratings are manufactured from high-strength pultruded bars, mechanically assembled to provide exceptional load-bearing capacity.

Key Characteristics

  • High strength-to-weight ratio

  • Excellent stiffness and span capability

  • Lower deflection under load

  • Precise dimensional control

Typical Applications

  • Industrial platforms and walkways

  • Power plants and substations

  • Oil & gas facilities

  • Heavy-duty access areas

Structural flooring and elevated platforms

GRP grating panels stacked in UAE factory showing industrial production and storage

Engineered for Industrial & Infrastructure Use

EFG Composites supplies GRP / FRP grating systems for:

These systems are engineered for continuous use, safety compliance, and long-term reliability.

Manufacturing & Quality Assurance

EFG Composites follows controlled composite manufacturing processes to ensure consistent quality and performance.

Manufacturing Highlights

Each grating panel undergoes inspection to ensure it meets mechanical, dimensional, and surface performance requirements.

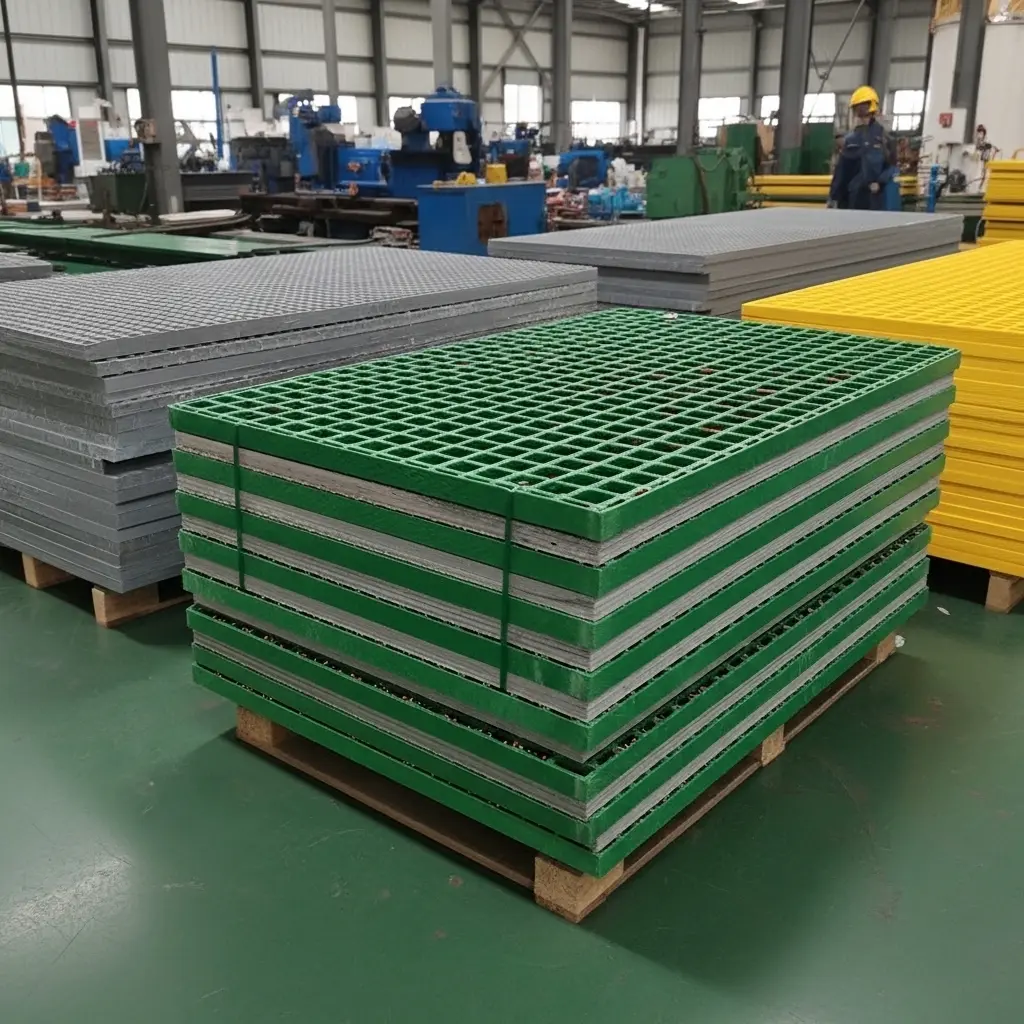

stacked GRP FRP grating panels in UAE factory ready for industrial installation
Installation Efficiency & Site Advantages

Compared to metal gratings, GRP / FRP systems offer:

  • Faster installation with reduced labour
  • Easier handling due to lightweight construction
  • No hot-work requirements during installation
  • Reduced downtime in operational facilities

This makes fiberglass gratings ideal for brownfield projects, live facilities, and retrofit installations.

UAE-Based Manufacturing Advantage

Operating from the Ajman Free Zone, EFG Composites provides:

  • Faster delivery across the UAE
  • Local support for inspections and approvals
  • Custom fabrication without overseas lead times
  • Support for government and private tenders
  • Responsive technical and after-sales support

Local manufacturing ensures greater accountability, shorter lead times, and consistent quality control.

Why Choose EFG Composites for GRP / FRP Gratings

We work with clients who prioritise durability, compliance, and long-term value over short-term cost savings.

UAE-based manufacturer, not an importer
Experience across industrial and infrastructure projects
Both moulded and pultruded grating capabilities
Engineering-led material and load selection
Request a Quotation

Discuss Your GRP / FRP Grating Requirement

If your project requires GRP or FRP grating systems manufactured in the UAE, our team can assist with load analysis, product selection, and fabrication planning.
